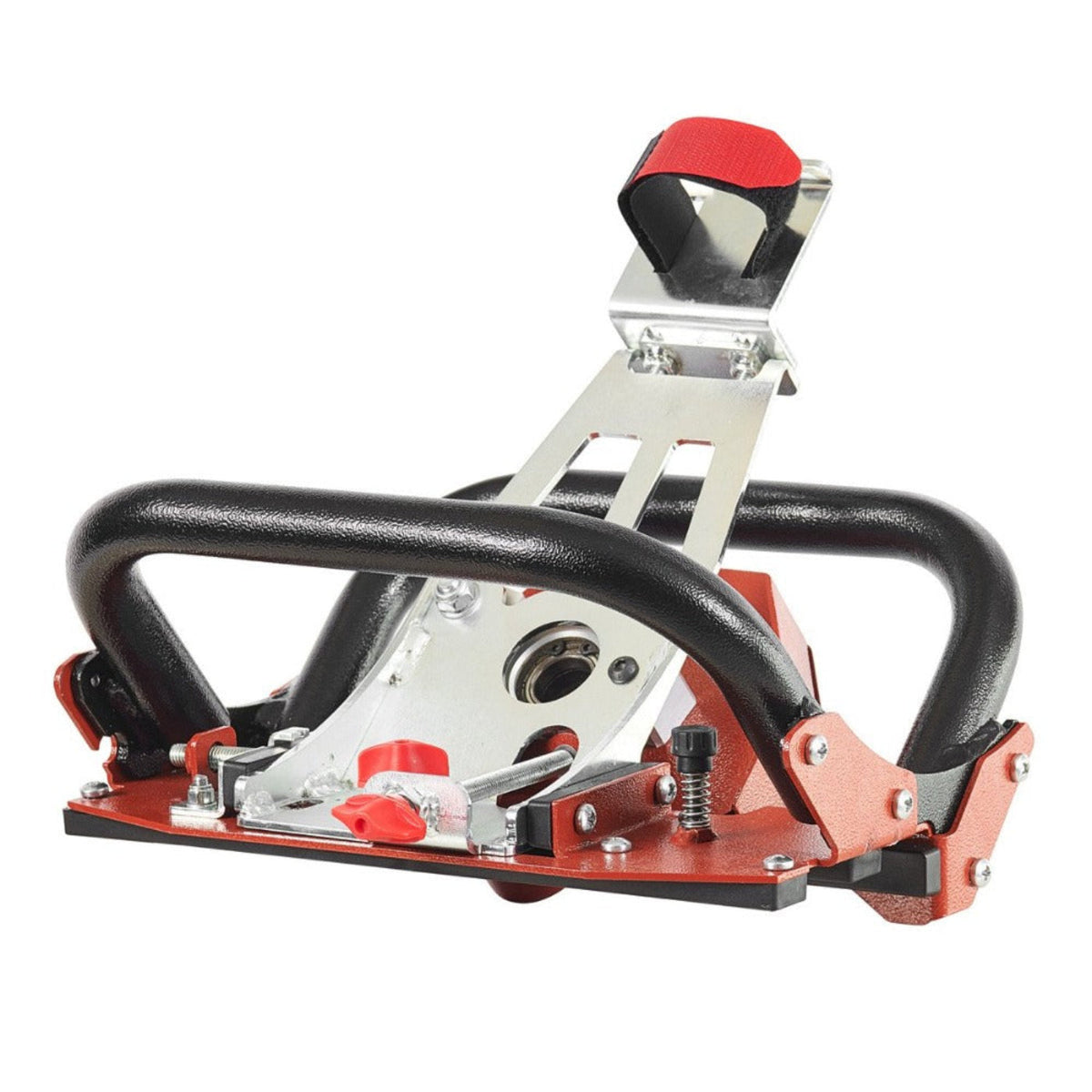

Raimondi Power Miter for 45° Bevel Cuts - TCLF45DB

Raimondi Power Miter for 45° Bevel Cuts - TCLF45DB

Features

• Device to perform 45° bevel cuts
• High quality, fast and precise work execution

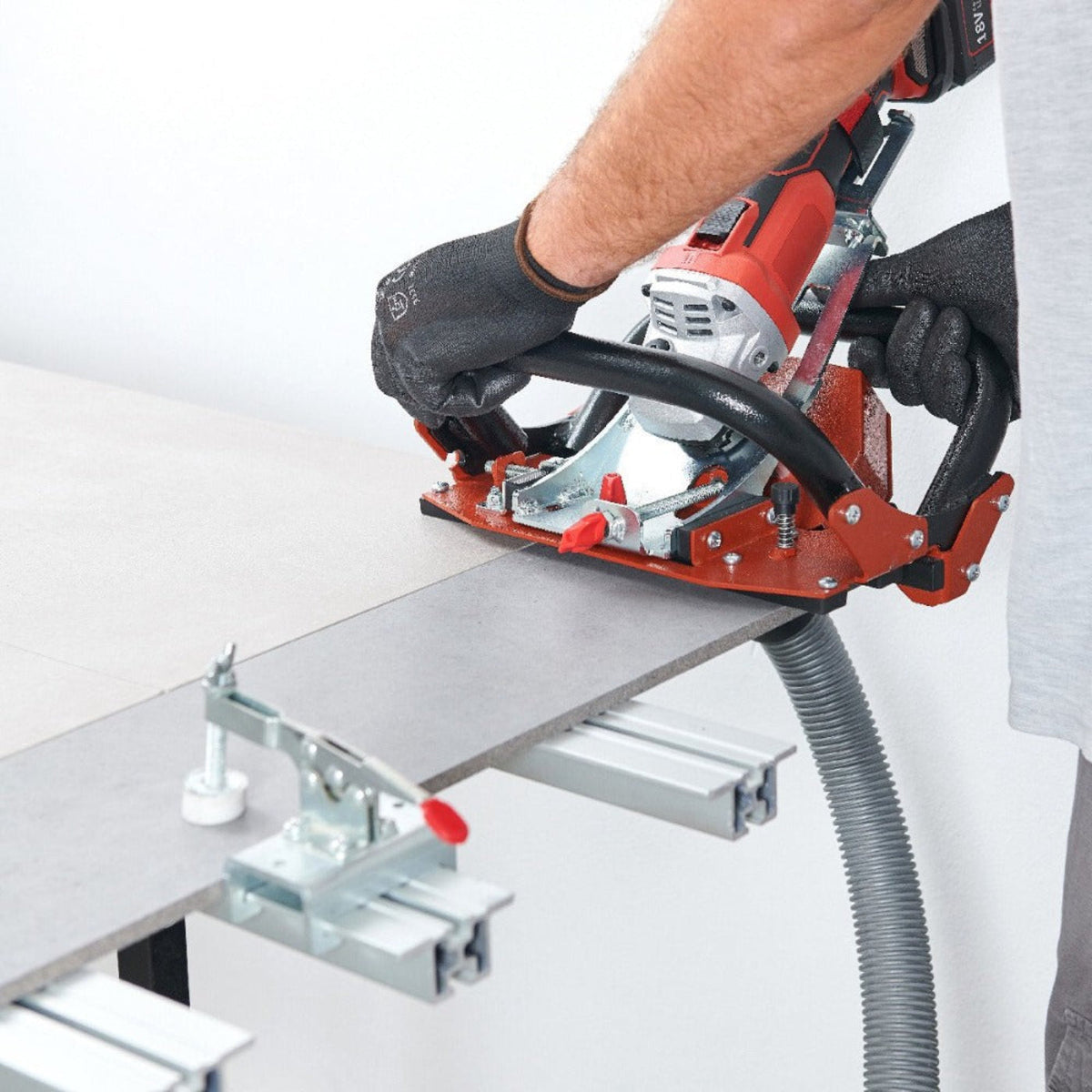

• No rail required and no length limit - use edge of tile as a guide
• Anti-scratch plastic sides ensure optimal smoothness
• Use both handles to allow necessary pressure and stability
• Suitable with almost all angle grinders with power between 600-1100W
• Maximum tile thickness 5/8" (16 mm)
• Knob calibration allows for adjustment of miter and cutting depth

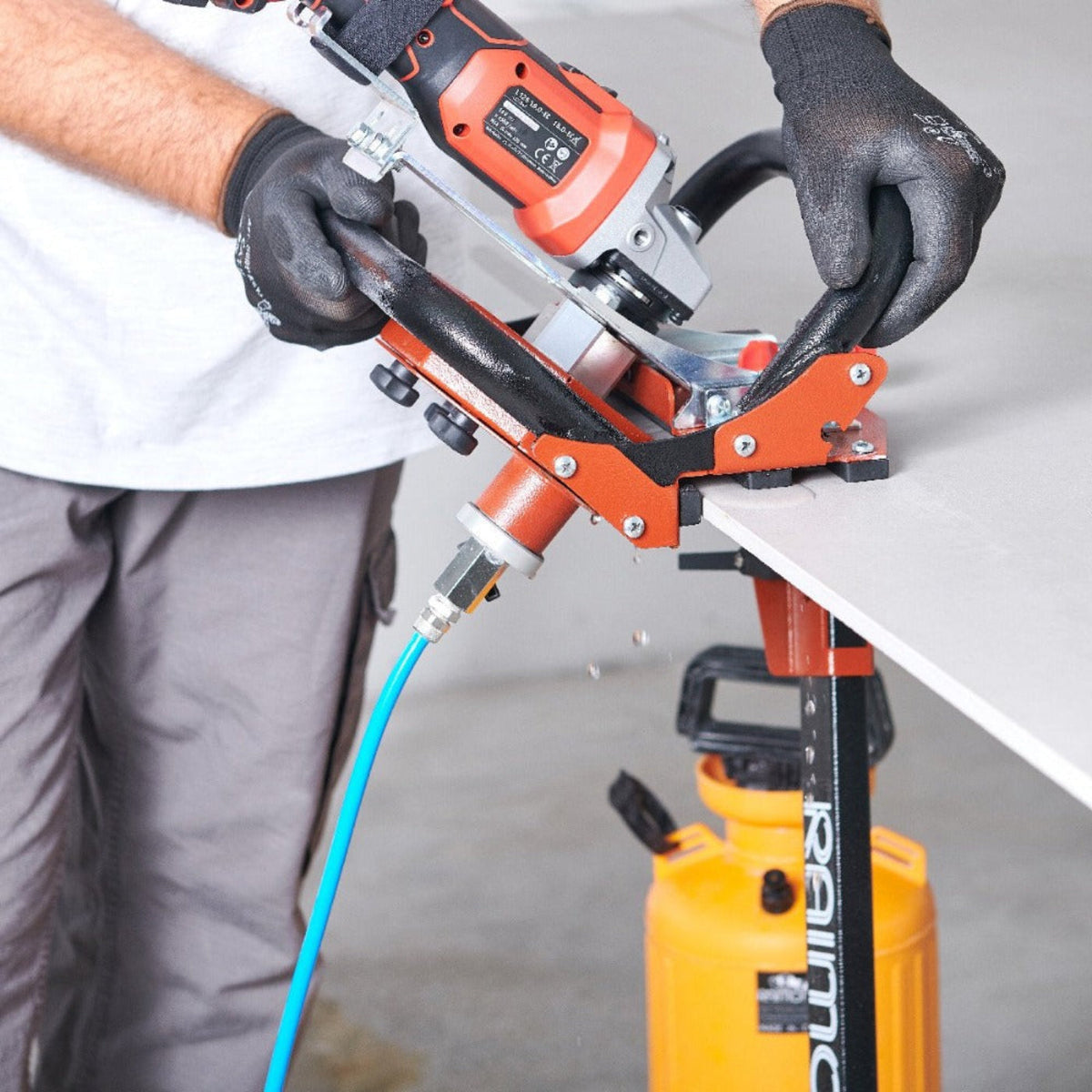

• Wet and dry cutting with water feed system and vacuum port
• Use proper GFCI protection around water
• Angle grinder and blade not included

What our Experts Think

• Precision 45° bevel cutting for professional finishes
  Engineered specifically for clean “jolly” cuts, delivering sharp, high-quality edges on porcelain and large-format tiles.
• No rail required – unlimited cutting length
  Uses the tile edge as a guide, allowing continuous cuts with no size limitation—ideal for large slabs and long runs.
• Fast, accurate, and consistent performance
  Designed for high-speed mitering with precise control, reducing rework and improving jobsite efficiency.
• Dual-handle control for stability
  Two ergonomic handles provide balanced pressure across the entire cut, ensuring smoother entry, mid-cut control, and clean exits.
• Adjustable depth and angle calibration
  Fine-tuning knobs allow installers to control cutting depth and bevel precision, helping prevent overcutting or chipping.
• Compatible with standard angle grinders
  Works with most 600–1100W grinders, making it easy to integrate into existing tool setups without extra investment.
• Wet or dry cutting versatility
  Supports both methods, with options for water feed or dust extraction to improve finish quality and jobsite cleanliness.
• Surface-safe, smooth operation
  Anti-scratch sliding components protect tile surfaces while maintaining smooth, controlled movement לאורך the cut.
• Optimized for large-format and porcelain tiles
  Handles materials up to 16 mm thickness, making it suitable for most modern tile installations.

Q&A

Q: What is the Raimondi Power Miter TCLF45DB?
A: A professional mitering device designed to create precise 45° bevel (“jolly”) cuts on porcelain, ceramic, and large-format tiles.

Q: How does it improve tile cutting accuracy?
A: It rides along the tile edge with a guided system, delivering fast, consistent, and highly accurate bevel cuts without needing a rail.

Q: Does it have a cutting length limit?
A: No, it offers unlimited cutting length, making it ideal for large-format slabs and long tiles.

Q: What tile thickness can it handle?
A: It supports tiles up to 16 mm (5/8") thick, suitable for most porcelain and ceramic applications.

Q: What tools are required to use it?
A: It works with most 600–1100W angle grinders and a 4.5" blade (not included).

Q: Can it be used for wet and dry cutting?
A: Yes, it supports both dry cutting (with dust extraction) and wet cutting (with water feed system) for cleaner results.

Q: What features ensure precision and control?
A: Dual ergonomic handles, adjustable depth knobs, and calibration controls allow consistent pressure and fine-tuned cutting accuracy.

Q: Does it protect tile surfaces during use?
A: Yes, anti-scratch plastic slides ensure smooth movement without damaging tile surfaces.

Q: Who is this tool best for?
A: Ideal for professional tile installers and contractors working on large-format or high-end finishing projects.

Maintenance Tips

• Clean after every use: Remove tile dust and slurry from slides, knobs, and body to maintain smooth operation and precision.
• Inspect adjustment knobs: Keep miter and depth calibration knobs clean and tight for accurate bevel cuts.
• Maintain sliding surfaces: Wipe anti-scratch plastic slides to prevent debris buildup that can affect glide and finish quality.
• Check angle grinder fit: Ensure secure attachment and proper alignment with compatible grinders (600–1100W) for consistent cutting.
• Monitor blade condition: Replace worn or chipped diamond blades to avoid rough edges and overheating.
• Lubricate moving parts lightly: Apply minimal oil to joints/adjustments to keep motion smooth without attracting dust.
• Use proper wet/dry care: If using water, dry thoroughly after use and follow GFCI safety practices to prevent damage.
• Store in dry conditions: Protect from moisture and impact to extend tool lifespan and maintain accuracy.
