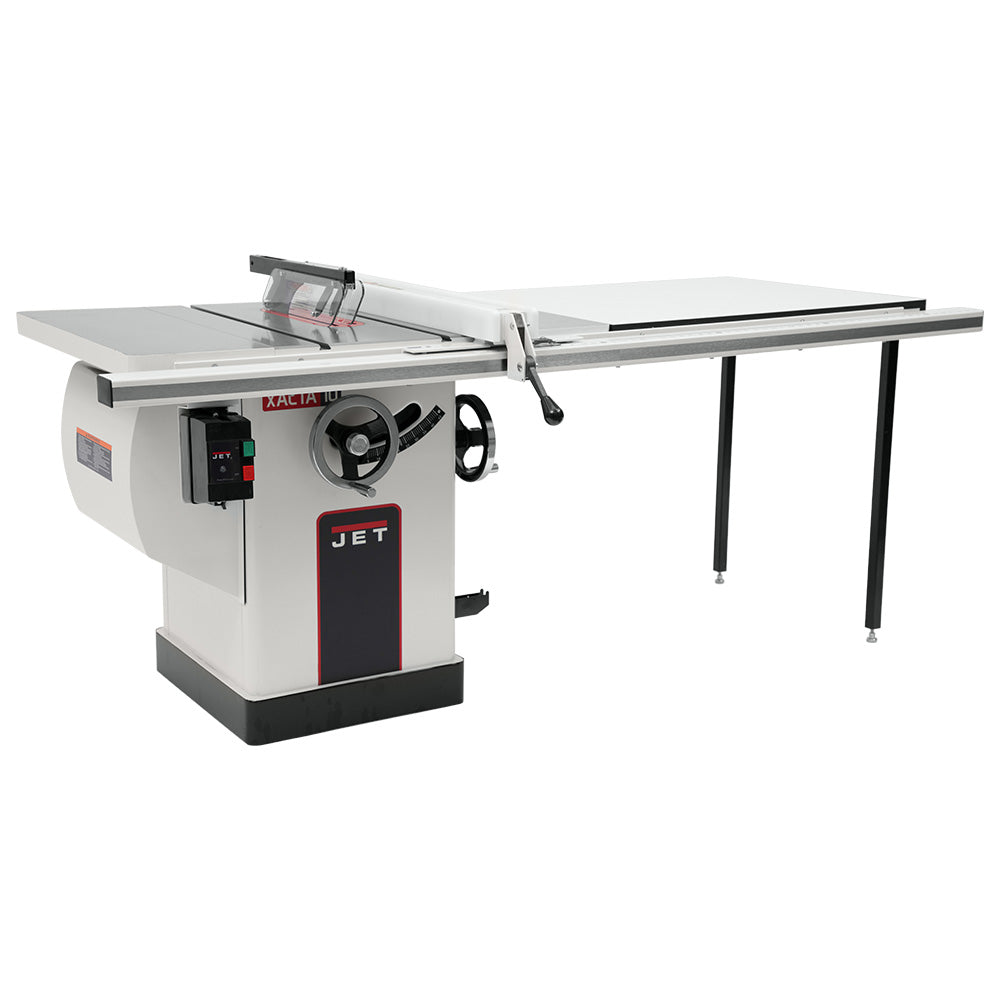

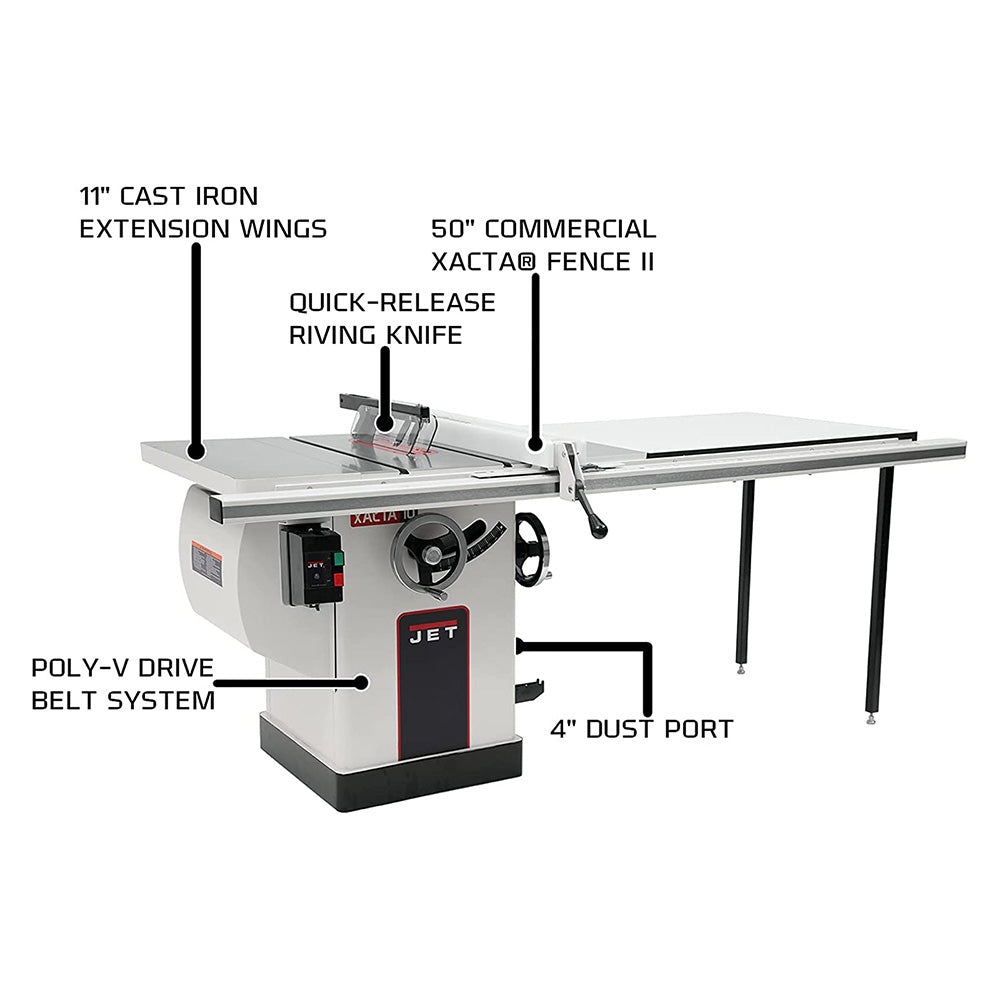

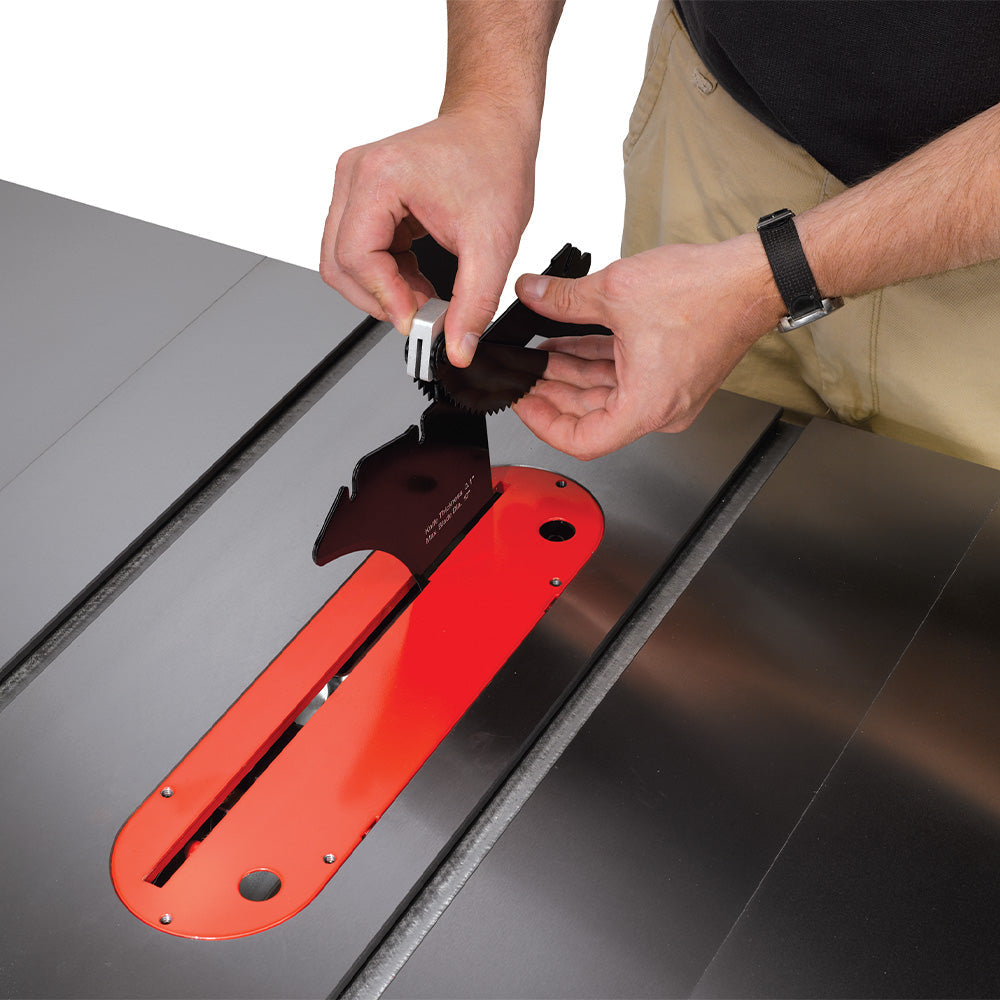

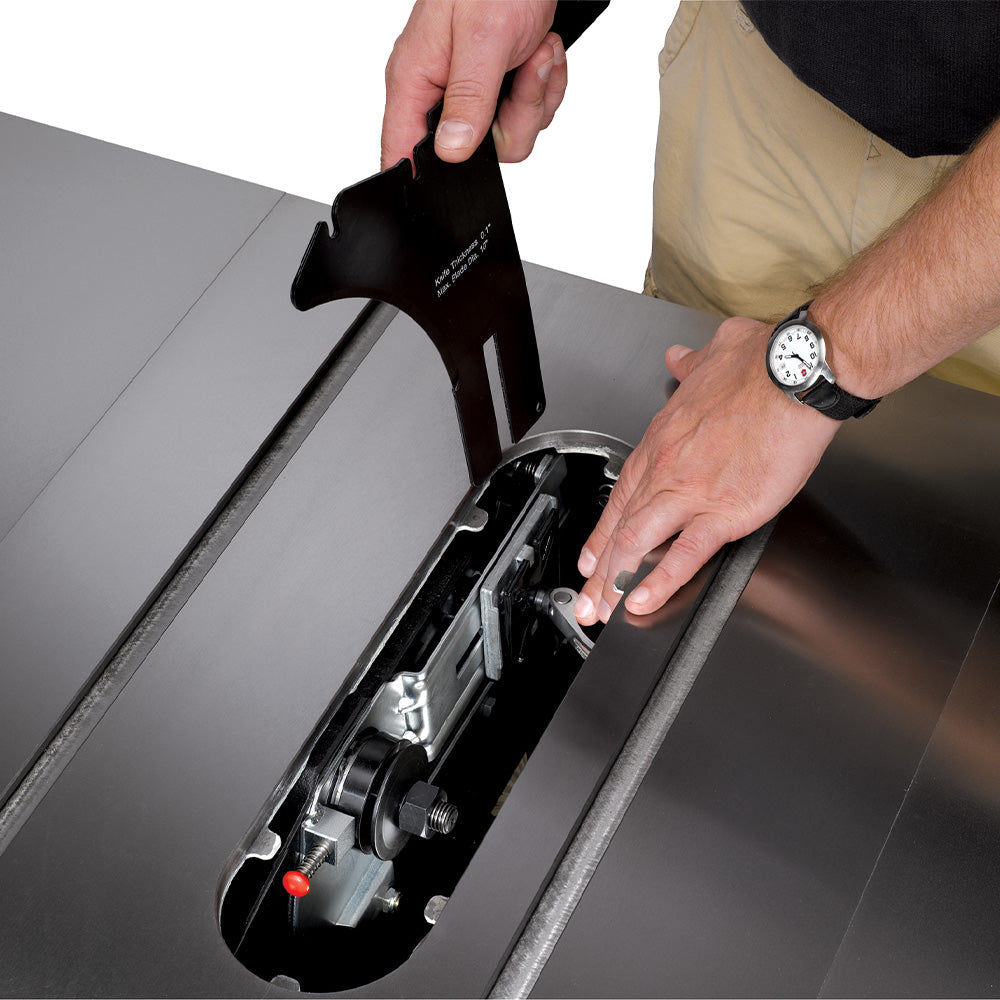

The JET Deluxe XACTA Saw features a quick-release riving knife and an integrated push button arbor lock that keeps the operator safe. Heavy-duty, chrome-plated handwheels provide smooth trunnion/arbor movement. The independent leaf safety guard protects the operator from the blade while cutting, even at a 45° tilt.
The Deluxe XACTA Saw offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer. A rail-mounted magnetic switch provides overload protection. The 26" x 30" wings and deeper table gives you even more cast iron to work on.
JET warrants every product they sell against manufacturer's defects. All JET Woodworking Machinery carry a 5-Year Warranty from date of purchase. Woodworking products with a 5-Year Warranty that are used for commercial or industrial purposes default to a 2-Year Warranty. Warranties are subject to JET's terms and conditions.
Note: Blade not included.
[TABS]
Features
- Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
- Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
- Hinged motor cover on cabinet gives quick access to the motor and belts

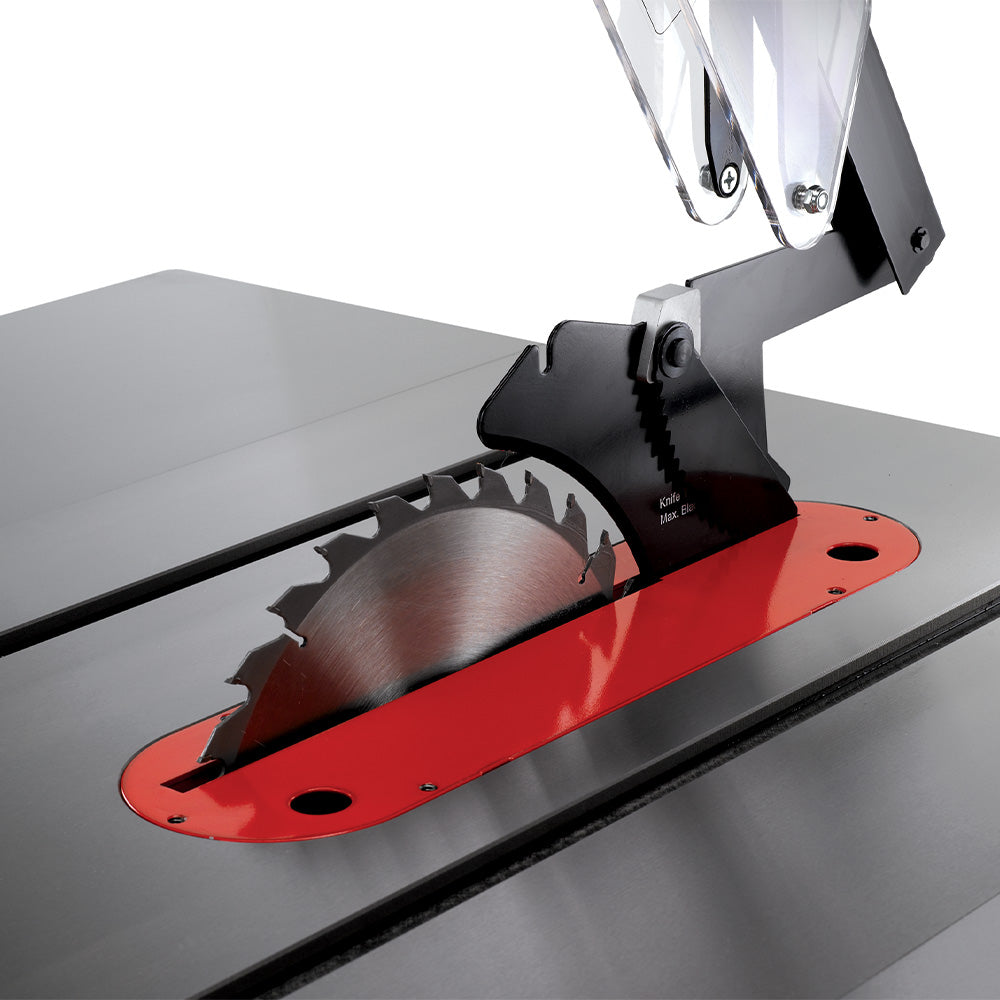

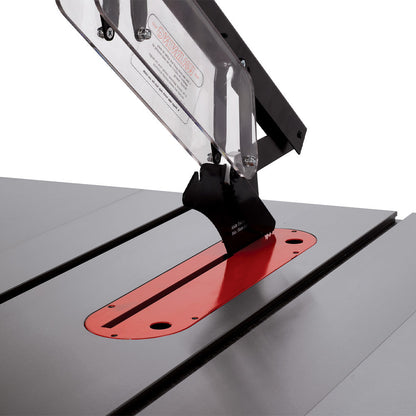

- Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
- Left and right cast iron extension wings
- Powder coated paint for a long-lasting, chip-resistant finish
- Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
- Rail-mounted magnetic switch is easy to reach and provides overload protection
- Wide stance heavy-duty trunnion for stability and smooth blade positioning
Specs
Blade dia.: 10"
Arbor dia.: 5/8"
Max. depth of cut: 3"
Max. thickness (45° cut): 2-1/8"
Max. rip right of blade: 50"
Max. width of dado: 13/16"
Max. dia. of dado: 8"
Dust port dia.: 4"
Min. dust collection required: 350 CFM
Table height: 34"
Table size w/extension (D x W): 29" x 42"
Table size w/o extension (D x W): 29" x 20"
Motor: 5hp, 1-phase, 230V
Net weight: 510 lbs.
